The trim tab is done! Well except the indicator 🙂

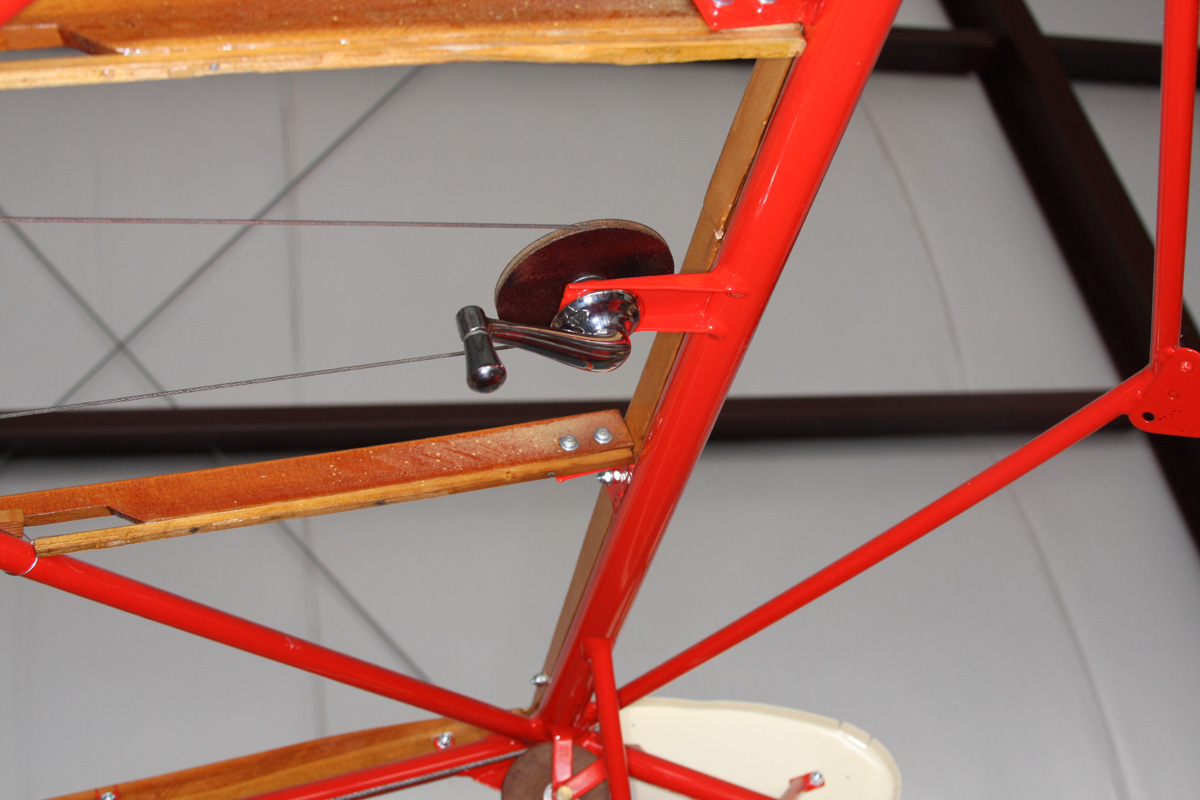

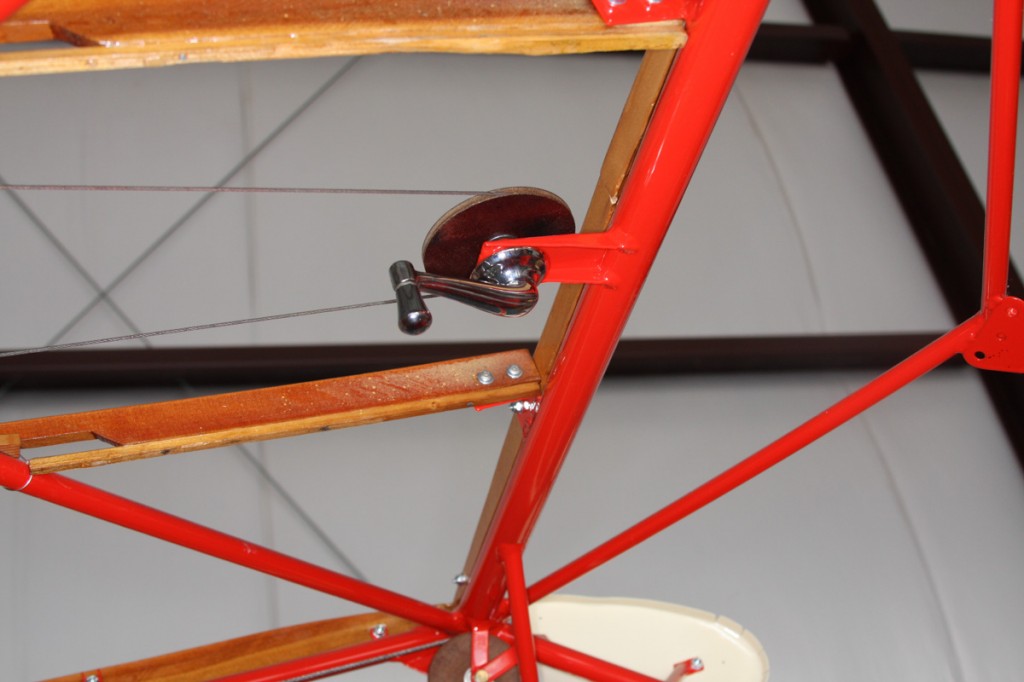

The above picture shows the control on the cockpit ceiling.

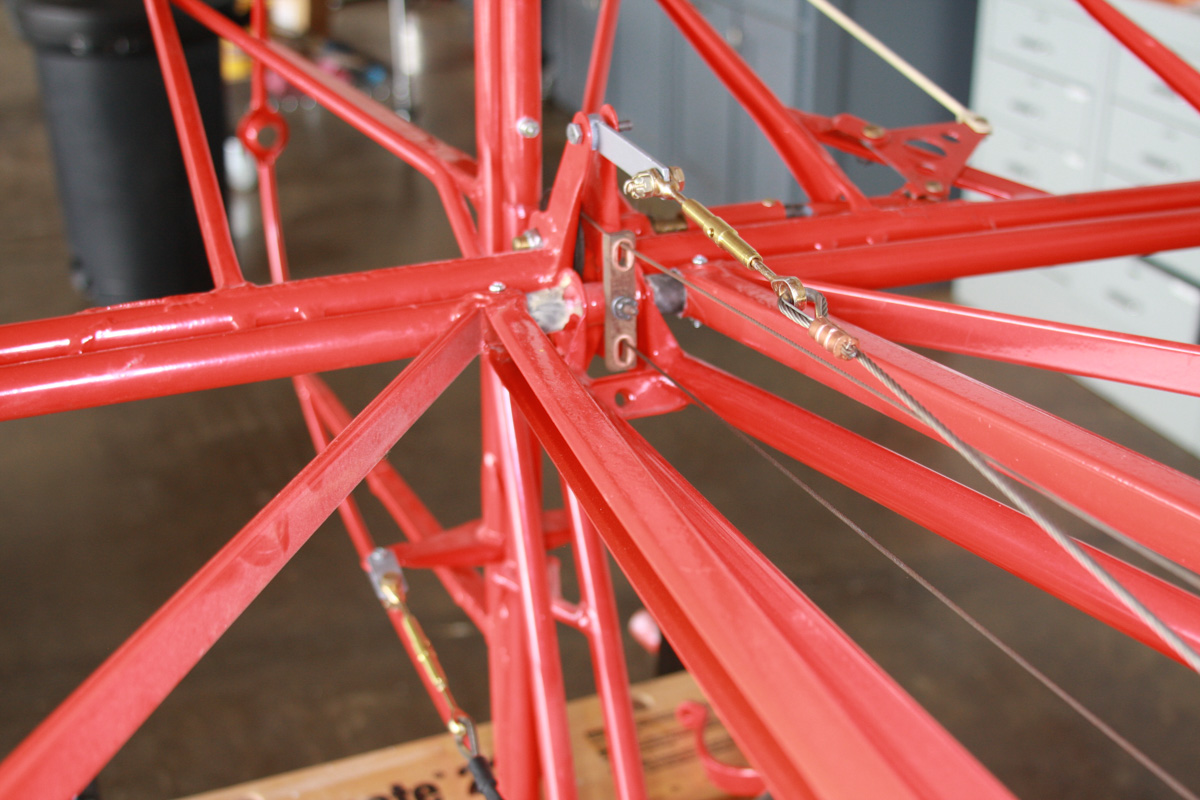

The two small wires go through the two copper lined holes to a phenolic wheel that is axial with the elevator.

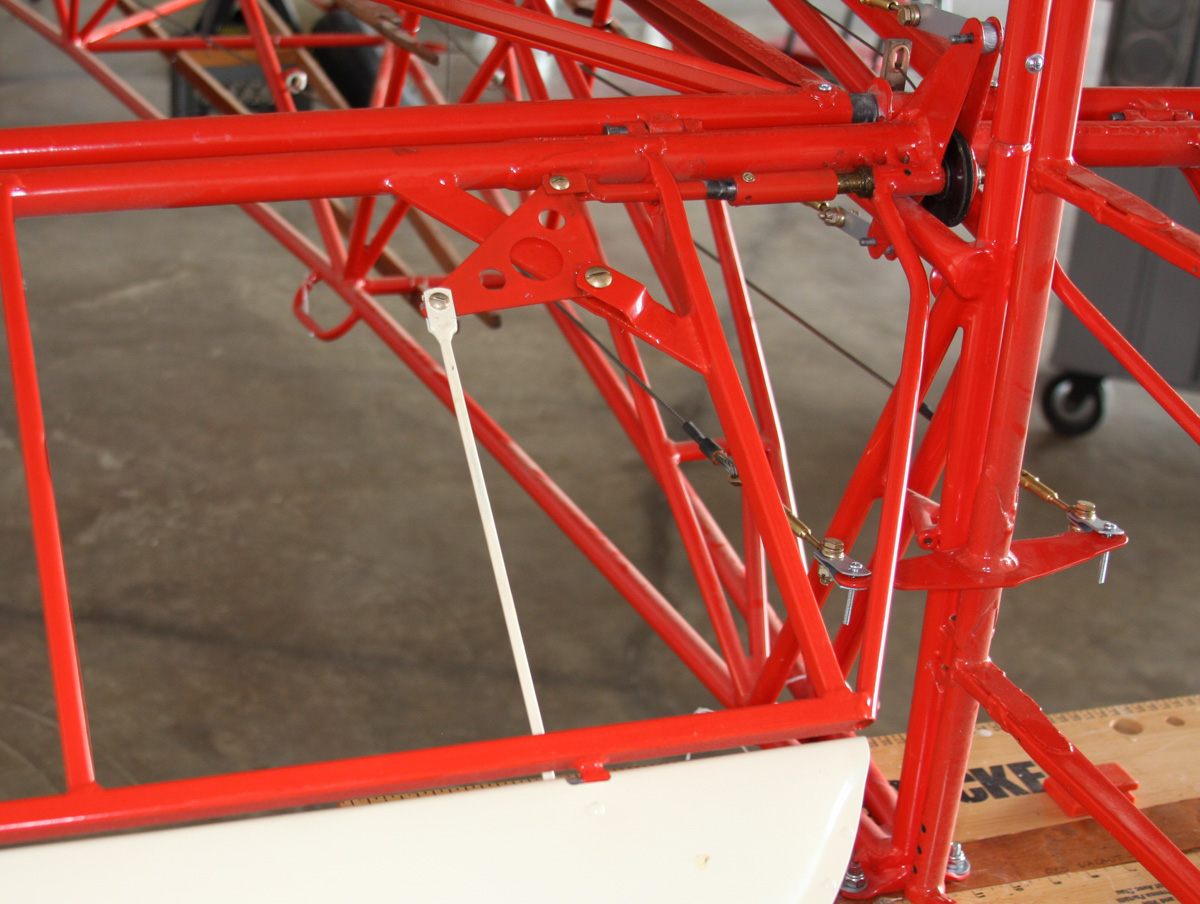

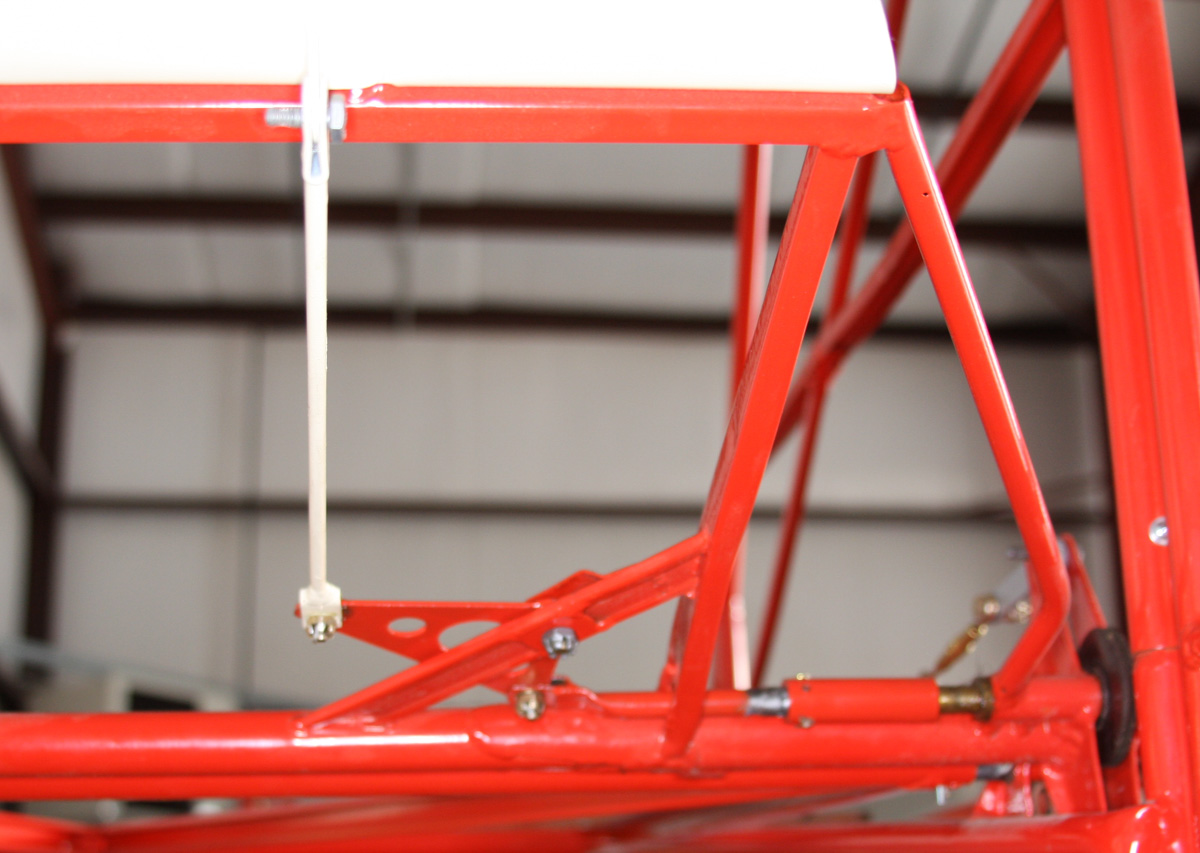

The wheel turns a shaft (picture taken from under the elevator) the pushes and pulls a triangular bracket that is connected to a rod that moves the trim tab.
The same from above the elevator.
